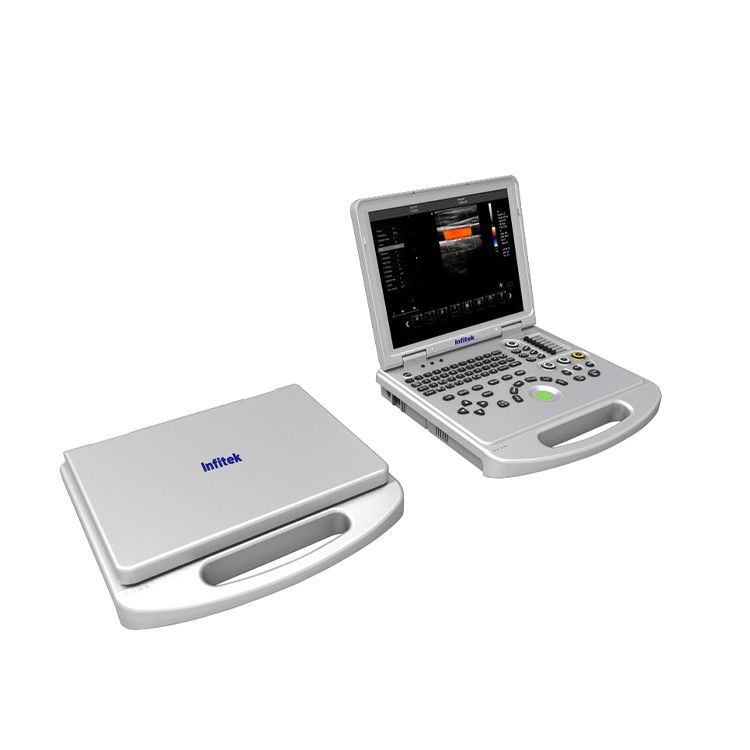

Color Doppler Ultrasound Scanner, Laptop, US-HCL5

  • High resolution medical 15.6-inch display
  • Spectrum envelope function
  • One-click automatic optimization
  • Rich user-defined functions
  • Built-in large capacity lithiumbattery (detachable)

Share the product

Description

It is equipped with a high-resolution medical display, adopts multi-beam parallel technology and sub-array element transducers, and its superior image clarity perfectly meets the needs of women’s health care.

Features

  • Brilliant ergonomics

High resolution LED with tilting funcitonality

User friendly keyboard and controls

  • Excellent image quality

Tissue Harmonic Imaging(THI)enhancing contrast resolution

Quick image optimization by IP(Image Processing)

  • segment TGC allowing delicate image adjustment
  • Powerful workflow

One-key save, user-defined keys bring ng great efficiency to your daily diagnosis.

  • Clinical Versatility

6 probes with abundant measurement packages covering traditional ultrasound applications and emerging fields such as urology, MSK and anesthesia.

Specifications

Model US-HCL5
Main Parameters
Ultrasonic Host Operating System Windows 8 operating system
Description Spectrum pulse Doppler
Direction energy Doppler
Real time three synchronization
Space composite imaging
Tissue harmonic imaging
2B / 4B imaging mode
Language English/Russian/Spanish/French
Display 15 inches, high definition LED
0-180°Angle adjustable
Physical Clipboard Save the image on the left side of the screen, which can be directly saved or deleted.
Function On-the-spot upgrade function
Trapezoidal imaging function
Presupposition For different inspection of the viscera, preset the inspection conditions for the best image, reduce the adjustment of the operation, and the commonly used external adjustment and combination regulation.
Signal Probe Interface With
Probes
Convex Probe 2.5MHz/3.0MHz/3.5MHz/4.0MHz/H4.0MHz/H5.0MHz,(Depth: 20-317MM)
Linear Probe 6.0MHz/7.5MHz/8.5MHz/10.0MHz/H10.0MHz,(Depth:20-110MM)
Transvaginal probe



4.5MHz/6.0MHz/7.0MHz/9.0MHz/H8.0MHz, (Depth:30-111MM)
Phased Array Probe 2.5MHz/3.0MHz/3.5MHz/4.0MHz/H3.0MHz/H4.0MHz,(Depth:30-371MM)
Micro-Convex Probe(R11) 4.5MHz/6.0MHz/7.0MHz/9.0MHz/H8.0MHz,(Depth:30-111MM)
Micro-Convex Probe(R20) 2.5MHz/3.0MHz/3.5MHz/4.0MHz/H4.0MHz/H5.0MHz,(Depth:30-23.7MM)
The above probes have harmonic frequencies.

Each probe has a selection of specialist and organ modes for quick access for diagnostic.

Two-Dimensional Imaging Mode
Gain 0-100, step 1 visible adjustable
TGC 8 segment adjustable
Dynamic Range 20-280dB 20 level visual adjustable
Pseudo Color 12, visible and adjustable
Sound Power 5% to 100%, step 5%, visible and adjustable
Body Mark  ≥6 kinds
Max.Focus Number: ≥6. adjustable
Gray Scale 0-7 level visible visible and adjustable
Filtering ≥5 kinds
Scanning Range 50%-100%
Frame Correlation 0-4 level, visible and adjustable
Display Content The screen shows 14 forms of real time display of power, probe frequency, dynamic range, pseudo color, grayscale and so on.
Color Imaging Mode
Colour Deflection Workable
Color Frame Correlation 12 levels, visible and adjustable
Color Map 7, visible and adjustable
Color Reversal Adjustable
 B/C Split Screen Synchronous Display Function Workable
Color Baseline 7, visible and adjustable
Color Line Density Adjustable
Spectrum Doppler Mode
Sampling Volume Angle Correction -80°~80° adjustable
Sampling Volume 0.5mm-20mm visible and adjustable
Frequency ≥5, visible and adjustable
Baseline 8 steps adjustable
Smooth 8 steps adjustable
Display Layout ≥4 kinds, visible and adjustable
Pseudo Color ≥ 7, visible and adjustable
Speed Scale 3-2288cm/s
Spectrum Envelope Function Real time automatic spectrum envelope, manual spectrum envelope, and so on.
System Automatic Analysis and Display PSV, EDV, RI, PI, S/D, ACC, HR and other kinds of data
Measurement and Analysis Function
Measurement General measurement distance, area, angle, time, slope, heart rate, velocity, acceleration, neck hyaline layer, spectrum tracing, resistance index / pulsatility index, etc.
Obstetric Measurement Weight measurement formula ≥13 options
Measuring Line The color and line type of the measuring line adjustable

(including activating the color and completing the color).

Location and Font Size The measurement results show that the location and font size adjustable.



Professional Software Package Abdomen, obstetrics and Gynecology, small organs, carotid, Urology, orthopedics, peripheral blood vessels, heart.
Graphic and Text Management System
Image Storage Format BMP  DICOM  JPEG  DEFAUIT
Host It built in ≥128G solid state hard disk to start fast and stable
Movie Playback ≥ 600 frames
Internal Patient File Information Management System Record patient number, name, check number, check date and so on, and can be searched and managed by numbering, checking number, name and so on.
Report Type of report≥ 18
One key fast report graphic and text management
Interface
USB Port 2
Audio Port 1
LAN Port 2
HDMI Port 1
Configuration
Main Unit 1pc.
Probes Convex probe(Optional), Linear probe(Optional), Micro-convex probe of R20(Optional), Phased array probe(Optional), Trans-vaginal probe(Optional), Volume probe(Optional)
Thermal Video Printer Optional
Mobile Trolley Optional
Dimension&Weight
External Dimension 375*350*480mm
N.W./G.W. 8.6kg/13.12kg
Shipping Dimension 560*390*570mm
