Automated External Defibrillator(AED), AED-5S

  1. Biphasic Defibrillator
  2. Energy: 200-Joues max.
  3. Adult/ Child mode button
  4. Infra-Red for data transmission
  5. Daily, weekly and monthly self-test

Share the product





As a rescue device, this defibrillator has good performance; and it is easy to use and implements daily, weekly, and monthly self-test.

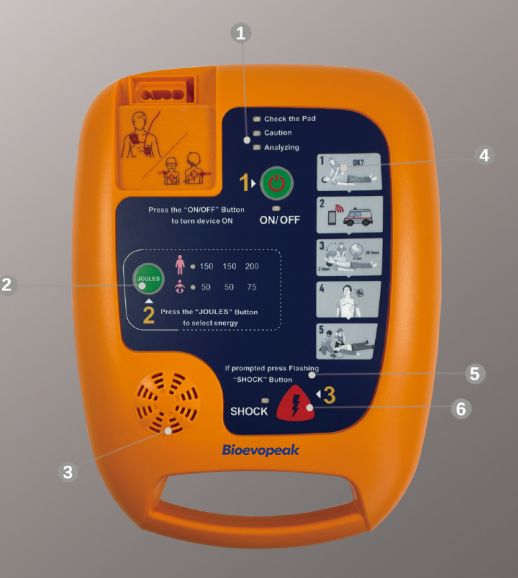

AED-5S 1
  • Color LED indicators for each step
AED-5S 2
  • Energy sequence selectable 50J~200J for different age and different situation
AED-5S 3

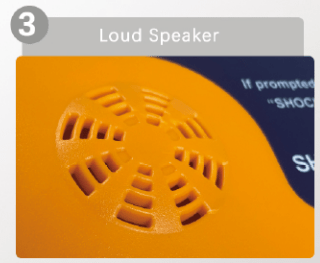

  • High quality speaker’s design provides great sound and loud which make it easy to hear the device instructions in public places
AED-5S 4
  • Visual steps for using an automatic external defibrillator
AED-5S 5
  • Written instruction on the device for each step and each button
AED-5S 6
  • Water resistant buttons and soft

1.Data Communication
AED storage software supports AED to receive data,which is sent through infrared, Meditech AED storage software supports reading and setting of ECG waves, setting of AED language,reading, analysis, deletion of storage data can be achieved by Meditech AED storage software as well.
2.Case Management
Meditech AED storage software makes selected data file as a case record and stores cases by ACCESS database.
Case Management supports data importing and data deletion, which can respond to ECG waveform of data file by selecting cases.
3.Memory Payback
The interface display status information recorded in the running of the AED, including type,event time, description, waves.
Event type includes on event, self-test event,analyzing event, charging event, discharging event,CPR starting event,CPR stopping event. The event time displayed is when the event happened.
Description shows the parameter information. “OHM” represents the detected impedance of the patient. Power parameter represents the voltage of the finished charging;”need to shock”represents that shock advised after analyzing “no need to shock” represents that no shock advised after analyzing.
4. ECG
Waveform gain can be set as 5mm/mv,10mm/mv,20mm/mv;
Waveform speed can be set as 12.5mm/s, 25mm/s, 50mm/s:
Print page can preview selected page in the playback interface, which can be used for printing basis information.




Model AED-5S
Self-test Daily,weekly,monthly
Mode Adult,child
Waveform Biphasic truncated exponential
Energy 200-Joues max.
Energy sequence Child mode:50/50/75 Joules
Adult mode:100/150/200 Joules
Charge time(New,at 25℃) Less than 6 sec. to 150J
Less than 8 sec. to 200J
Voice prompt Extensive voice prompt
Visual indicators LED prompts
Control Two buttons:ON/OFF, Shock
ECG storage 1,500 events
Data transmission Infrared


Battery non-rechargeable

12V, 2800mAh Li-MnO2 Cell

Dimensions(L*W*D) 300*240*80mm
Wight (with battery) 1.9kg (4.2 Pounds)
Operating temperature 0~40℃
Operating humidity Relative humidity between 30% and 95%


Storage temperature

(without battery)

Storage humidity

(without battery)

Up to 93%(non-condensing) Physical
