- Measuring Range (mPa·s) : 6～320,000,000
- Rotating Speed (RPM): 0.1～99.9/0.1～200(Stepless Gear)
- Number of spindle: 4/6
- Accuracy: ±1% full scale range in use
- Repeatability: ±0.5% full scale range in use
Digital Viscometer, VSC-E1 Series
Description
1. High subdivision drive of stepping motor with 16-bit microprocessor core
2. LCD display with blue backlight function
3. The screen directly displays viscosity, shear rate, shear stress, speed, temperature, percent torque, rotor number, and the maximum viscosity value of the selected rotor that can be measured at the current speed
4. The RTD temperature probe can monitor and measure the temperature of the tested sample in real time
5. You can download custom measurement programs to the instrument to achieve automated and personalized operations.
6. Optional corresponding software for data collection, analysis, storage and comparison.
 |
Optional matching Thermostatic baths
A-LC1008 Refrigerant, environmentally friendly R134a A-RC0508 Packing weight: 20.5kg |

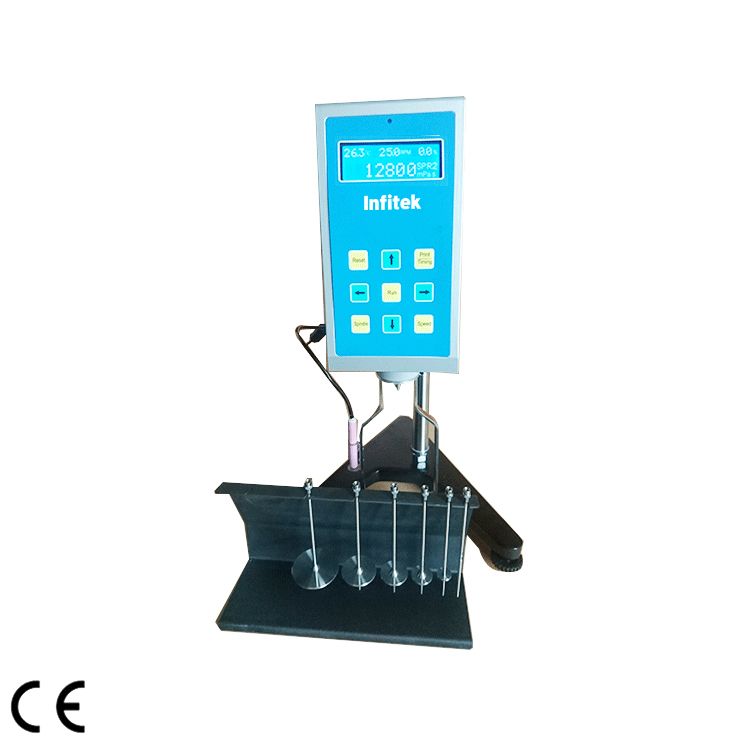

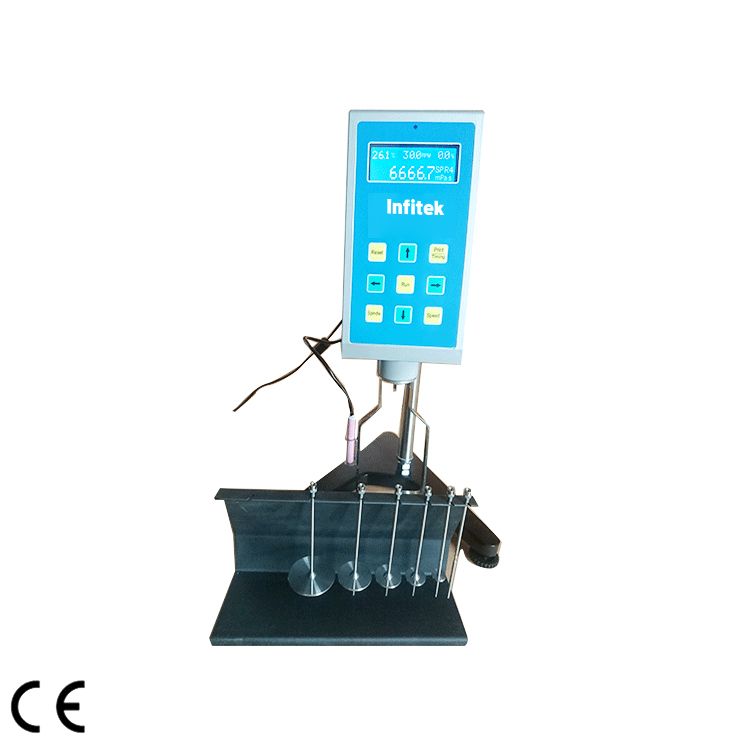

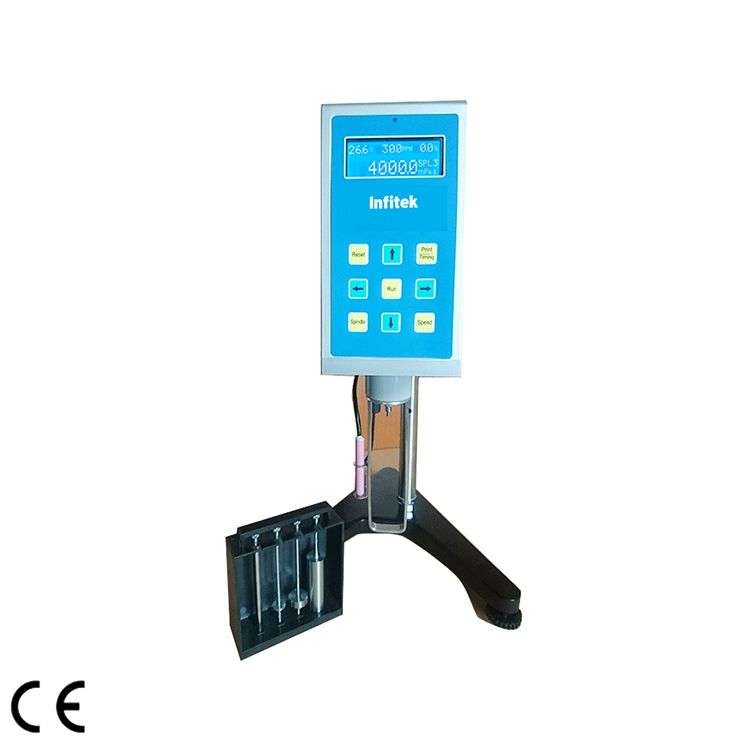

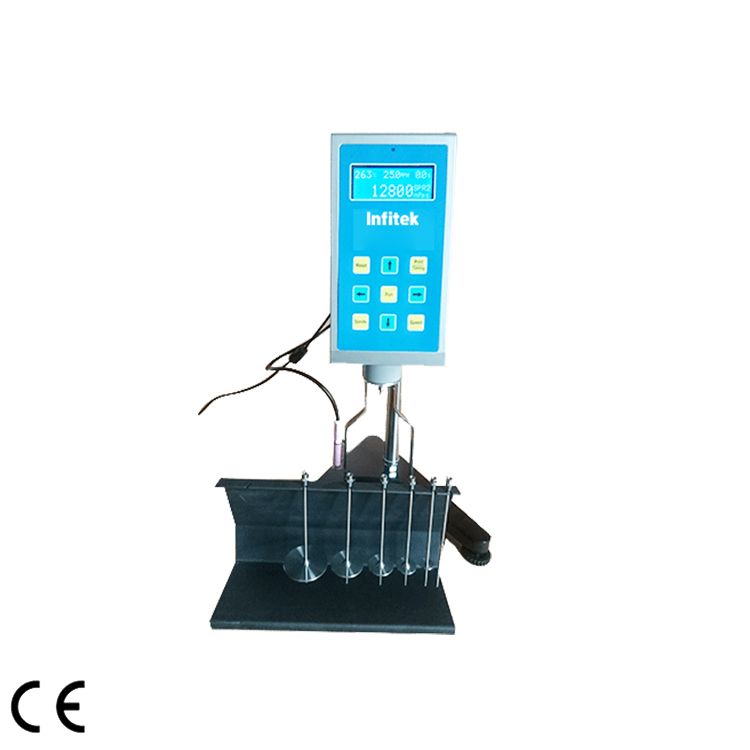

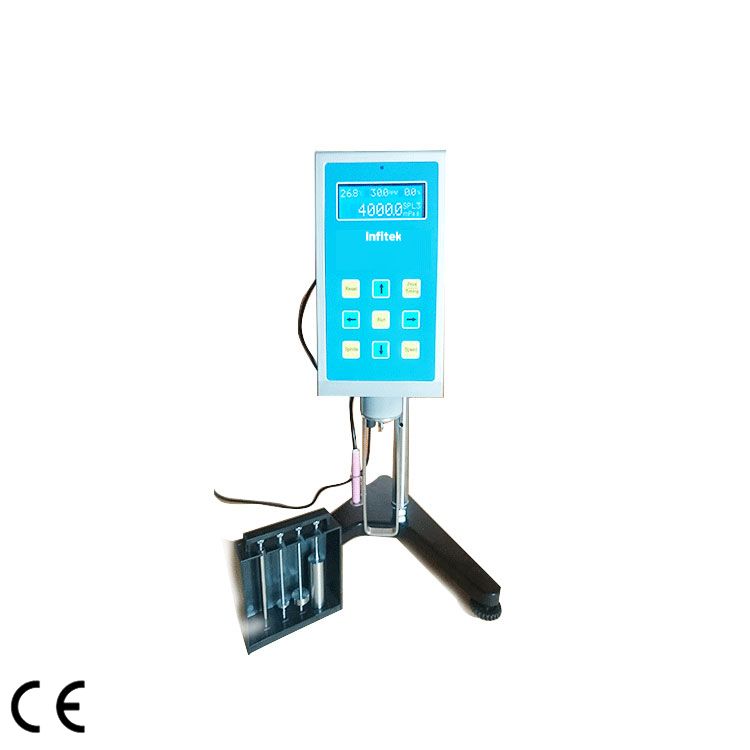

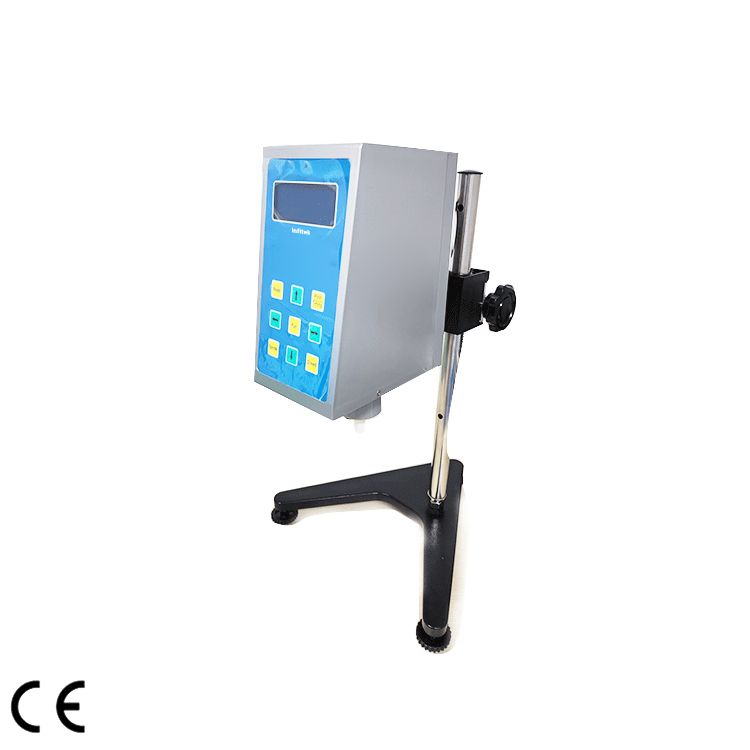

| Model | VSC-E1 | VSC-E2 | ||||
| VSC-E1-1 | VSC-E1-2 | VSC-E1-3 | VSC-E2-1 | VSC-E2-2 | VSC-E2-3 | |
| Measuring Range（mPa·s） | 12～6,000,000 | 80～40,000,000 | 640～320,000,000 | 6～6,000,000 | 40～40,000,000 | 320～320,000,000 |
| Rotating Speed (RPM) | 0.1～99.9 （Stepless Gear） | 0.1～200 (Stepless Gear) | ||||
| Number of Spindles | Spindles (Code L1, L2, L3, L4) are equipped with the product | Spindles (Code R2, R3, R4, R5, R6, R7) are equipped with the product | Spindles (Code L1, L2, L3, L4) are equipped with the product | Spindles (Code R2, R3, R4, R5, R6, R7) are equipped with the product | ||
| Accuracy | ±1% full scale range in use | |||||
| Repeatability | ±0.5% full scale range in use | |||||
| Readability | 1.when viscosity is lower than 10.0 cp: 0.01 | |||||
| 2.when viscosity is lower than 10000 cp: 0.1 | ||||||
| 3.when viscosity is equal or higher than 10000 cp: 1 | ||||||
| Power | Power adapter (input: 100-240V, 50/60Hz) | |||||
| LCD screen display | The LCD screen can display the viscosity, speed, torque spindle, temperature and the maximum viscosity can be measured in the current spindle speed value. | |||||
| Package Size(mm) | 410*360*530 | 410*360*520 | 410*360*520 | 400*350*360 | 400*350*550 | 400*350*550 |
| Net weight(kg) | 8kg | 10.5kg | 10.5kg | 8kg | 10.5kg | 10.5kg |
