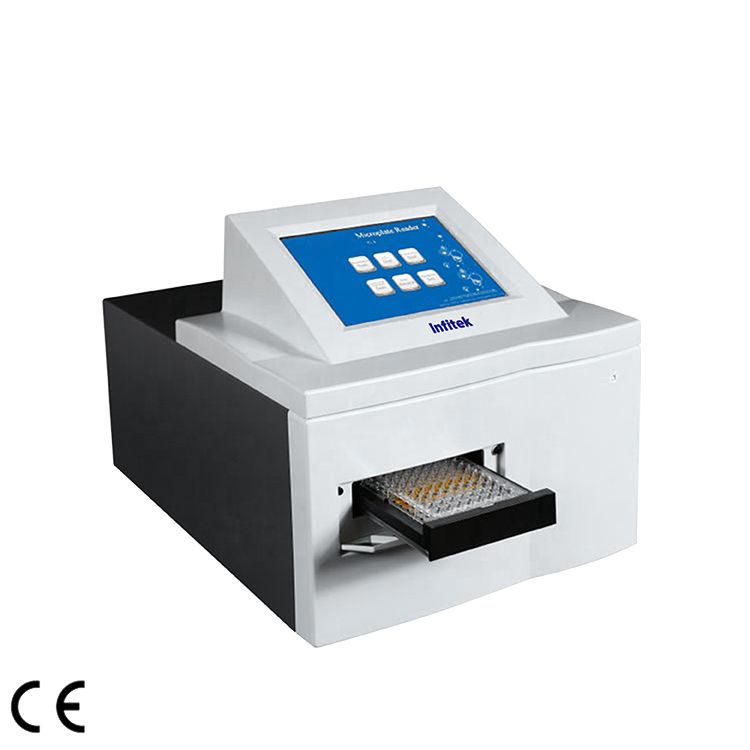

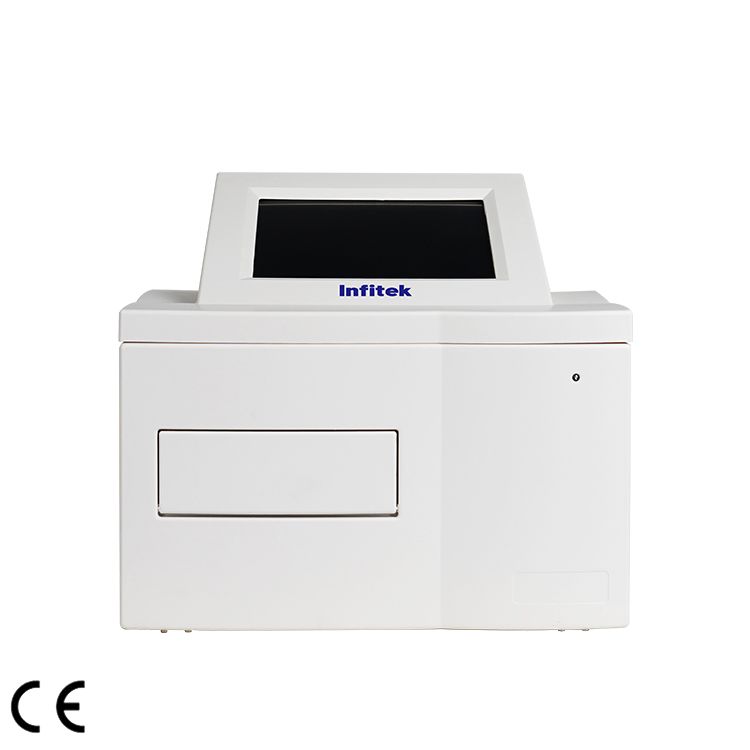

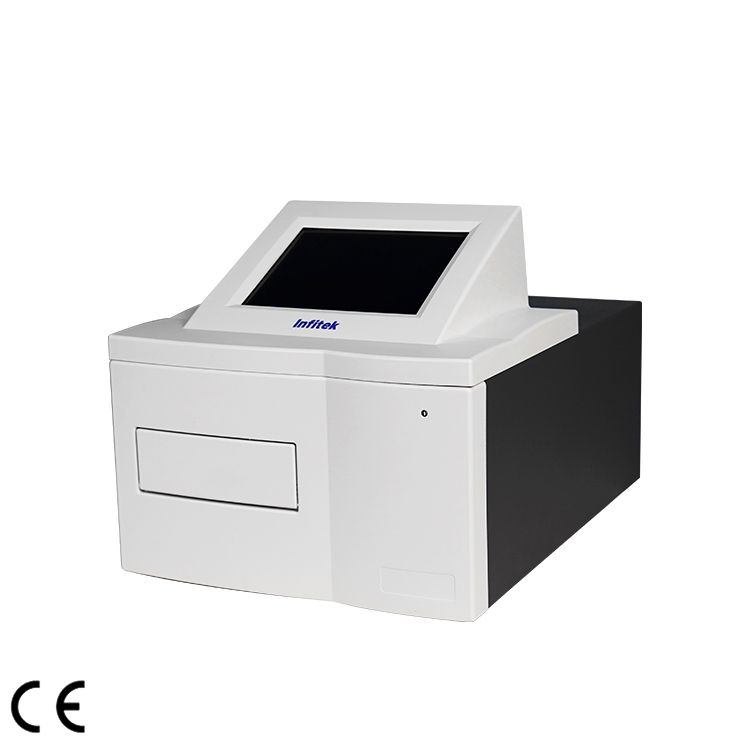

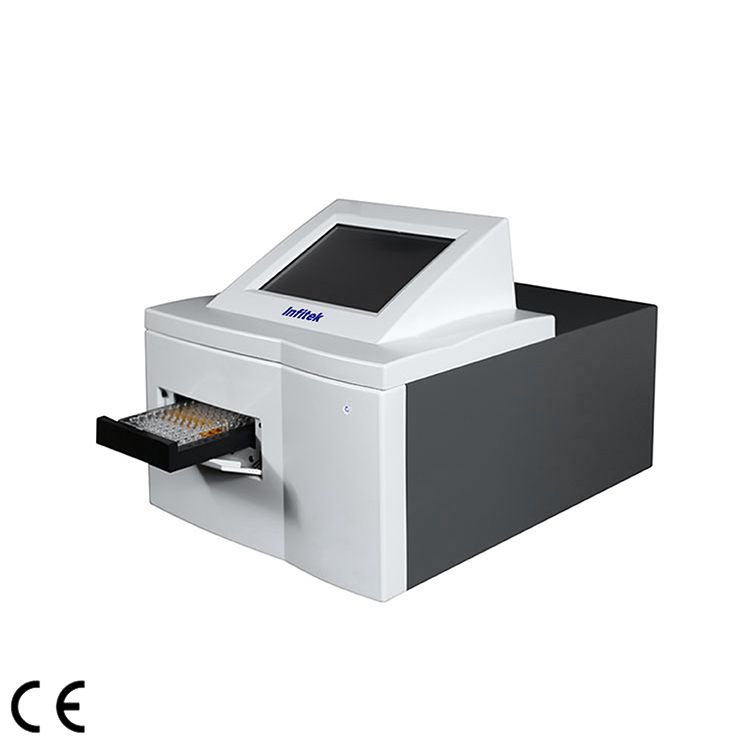

Automatic Microplate Reader, MPR-D111

Microplate Types: 96 well plate
8 channel vertical light path system
8 inch color LCD screen
Accuracy: ≤±0.01Abs
Stability: ≤±0.003Abs
Filter: Default configuration 405、450、 492、630nm, Can be installed up to 15 filters.

Microplate readers are used to measure chemical, biological or physical reactions, properties and analytes within the wells of microplates.

8-inch color LCD display with touchscreen operation
Eight channel optical fiber measurement system, imported detector.
Fully enclosed design of optical path system, long-term maintenance free
Center positioning function, accurate and reliable.
Three linear shaking functions with adjustable speed and time.
Unique open Cut-Off judgment formula,Think what you think.
End point method, two point method, dynamics, single 1 dual wavelength test mode.

Model	MPR-D111
Lamp	DC12V 22W Tungsten halogen lamp（Lifespan up to 5000h）
Optical path	8 channel vertical light path system
Wavelength range	400- 1000nm（Optional340-1100nm）
Filter	Default configuration 405、450、 492、630nm, Can be installed up to 15 filters.
Reading range	0- 5.000Abs
Linear range	0-3.500 Abs
Resolution	0.001Abs
Accuracy	≤±0.01Abs
Stability	≤±0.002Abs
Repeatability	≤0.2%
Incubation function	RT.+4°C to 50°C, with an accuracy of ±0.5℃ at 37℃ (optional).
Vibration plate	Three kinds of linear vibration platefunction ,Adjustable 0- 255 seconds
Display	8 inch color LCD screen, display the entire board information,touch screen operation.
Software	Professional software, Can store 100 groups program,100000 sample results, More than10 kinds of curve fitting equation.
Interfaces	COM + USB ports (communication, printing, USB flash drive).
Power input	AC100-240V 50-60Hz
Weight	11Kg
Size	433mm(L)* 320mm(W)*308mm(H)
Package Dimension (WDH)	620520460(mm)
G.W.(kg)	21Kg
