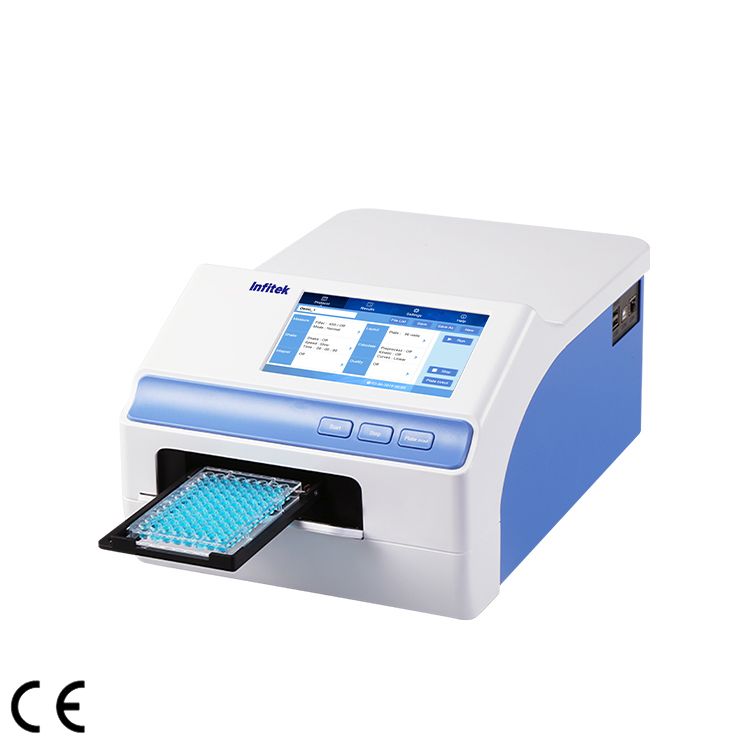

The MPR-100/MPR-100T is a high-quality light absorption microplate reader based on a filter, with a wavelength range of 340nm~750nm, suitable for scientific research and clinical applications. 7-inch touch screen color LCD display, no keyboard required, easy to use.

Features

High-resolution 7-inch color touch screen, easy to operate, no keyboard required, easy to use;
Multiple software configuration, which can be used as a single machine or connected with a computer,and the results are exported in real time;
Absorbance range: 0.0~4.000 Abs, meeting different measurement requirements;
8-position filter wheel, standard 4 filters, optional other filters;
The built-in software can provide instrument control and data analysis, and can be directly connected to a U disk;
The detection speed is fast, and the whole 96-well microplate detection can be completed within 6 seconds.

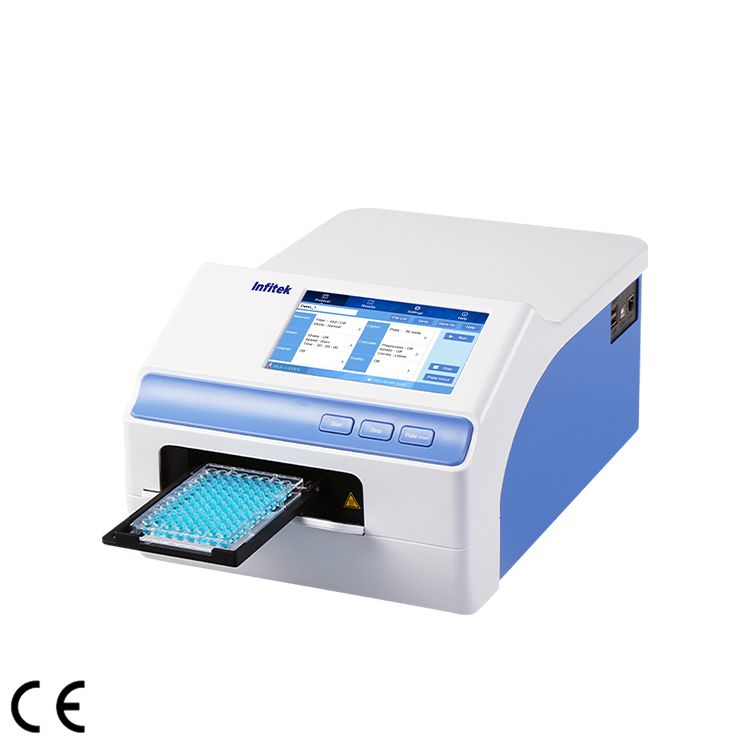

MPR-100T has additional incubation function, with temperature range is from RT+4°C to 50 °C

Advantages

High-resolution 7-inch touch screen, simple and intuitive operation, no keyboard required;
Visual layout, convenient and practical;
The microplate reader is equipped with the standard control and data analysis software Readerlt-I, which is convenient and quick for data detection;
Powerful data analysis function and excellent result report, not only can run the analysis independently, but also run the analysis on the computer.

MPR-100T Operation Interface

ReaderIt-I Software Interface

Model	MPR-100	MPR-100T
Display	7 inch high resolution capacitive touch screen
Light Source	6V, 10 W halogen lamp
Wavelength Range	340nm ~ 750nm
Optical Filter	8-position filter wheel, standard 4 filters: 405nm, 450nm, 492nm, 630nm
Absorbance Range	0-4.0Abs
Resolution	0.001 Abs
Linear Range	R² ≥0.995 absorbance range 0~3.0 Abs	R² ≥0.995 [0,3 Abs]
Wavelength Accuracy	≤±2nm
Absorbance Repeatability	CV≤0.3 % [0,3 Abs); CV≤1 % [3,4 Abs)
Absorbance Stability	≤0.005 Abs [0,3 Abs) ≤2.0 % [3,4 Abs)	≤±0.005 Abs [0,2 Abs) ≤0.3 % [2,3 Abs) ≤2.0 % [3,4 Abs)
Absorbance Accuracy	≤±0.005 Abs [0,2 Abs) ≤±0.01 Abs [2,3 Abs) ≤±1.5 % [3,4 Abs)	≤±0.005 Abs [0,2 Abs) ≤±1 % [2,3 Abs) ≤±1.5 % [3,4 Abs)
Sensitivity / Detector	≥0.01 A / photodiode
Measuring Speed	6s / 96-well plate, fast mode; single wavelength <15 s / 96-well, dual wavelength <28s / 96-well (common mode)
Incubation Temperature Range	——		RT.+4 °C ~ 50 °C
Temperature Accuracy	——		±0.5°C @ 37 °C
Temperature Uniformity	——		±0.5°C @ 37 °C
User Interface	Built-in software, touch screen input, external mouse
Internal Storage	Can store 1000 measurement programs and measurement results
Port	3×USB ports, connecting computer, printer and USB drive
Electricity	AC 100-240 V, 50-60 Hz, 2 A
External Dimension (WDH)	295440225 mm
N.W./G.W.	10kg/14kg		11kg/14kg
Package Dimension (WDH)	560430390mm		560430390mm
