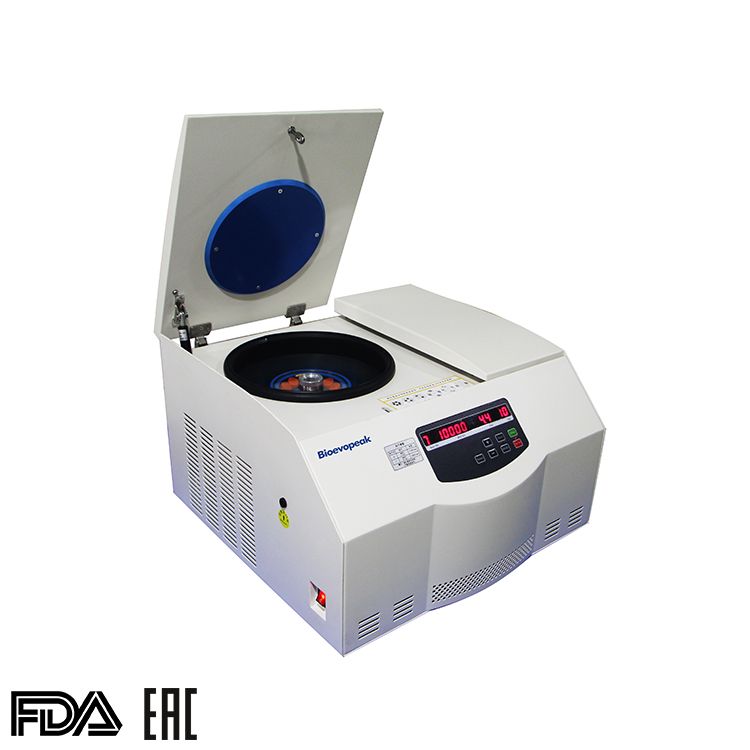

Refrigerated Centrifuge, High Speed, CFGR-16DR

  • Max. Speed: 16000r/min
  • Max. RCF: 17800×g
  • Premium steel shell; stainless steel chamber.
  • Ideal equipment for separation and concentration
  • Contains various safety protection

Share the product


This series of centrifuges is an advanced intelligent instrument. As an ideal equipment for separation and concentration, it is widely used in the fields of biochemistry, medical care, food safety, life science, farming, stock breeding, blood bank, biological pharmacy and so on. It can be a high-technology replacement product for the imported one.


  • Driving: Drivenby brushless DC motor. It contains the soft brake to avoid resuspension for samples.
  • Speed Control:The acceleration time to the maximum rotational speed is approx. 14 s; The deceleration time from maximum rotational speed is approx 15 s.
  • Display:Controlled by microcomputer with touching pad and visual digital display.
  • Cooling: Totally CFC-free compressor with controlling valve.
  • Rotor:With standby cooling,the rotor remains at the required temperature.Rotors are autoclavable at 121℃ for 20 minutes.
  • Body Structure:Premium steel shell; stainless steel chamber.
  • Safety Protection:It contains various safety protections including lid locking and holding during rotor on,over speed,over temp.unbalance.The electronic lock ensures its safety and reliability during running.


Model CFGR-16DR
Max. Speed 16000r/min
Max. RCF 17800×g
Max Capacity 4×100ml
No.6 Angle Rotor 12×1.5/2.0ml(16000r/min)RCF:17800×g
No.10 Angle Rotor 18×0.5ml(16000r/min)RCF:17800×g
No.13 Angle Rotor 24×1.5/2.0ml(13000r/min)RCF:16060×g
No.14 Angle Rotor 10×5ml(13000r/min)RCF:11500×g
No.19 Angle Rotor 12×10ml(12000r/min)RCF:14800×g
No.22 Angle Rotor 6×50ml(11000r/min)RCF:14610×g
No.23 Angle Rotor 4×100ml(10000r/min)RCF:11220×g
No.25 Angle Rotor 12×15ml(10000r/min)RCF:10290×g
No.26 Angle Rotor 48×0.5ml(13000r/min)RCF:16060×g
Speed Accuracy ±30r/min
Timer Range 0~99min
Temp. Range -20℃~40℃
Temp. Accuracy ±1℃
Compressor High-performance compressor with CFC-free refrigerant
Sound Emission ≤58dB
Motor AC variable frequency motor, microcomputer control
Electricity AC 220V 50Hz 15A
Dimension (W×D×H) 600×580×370mm
Weight 90kg
