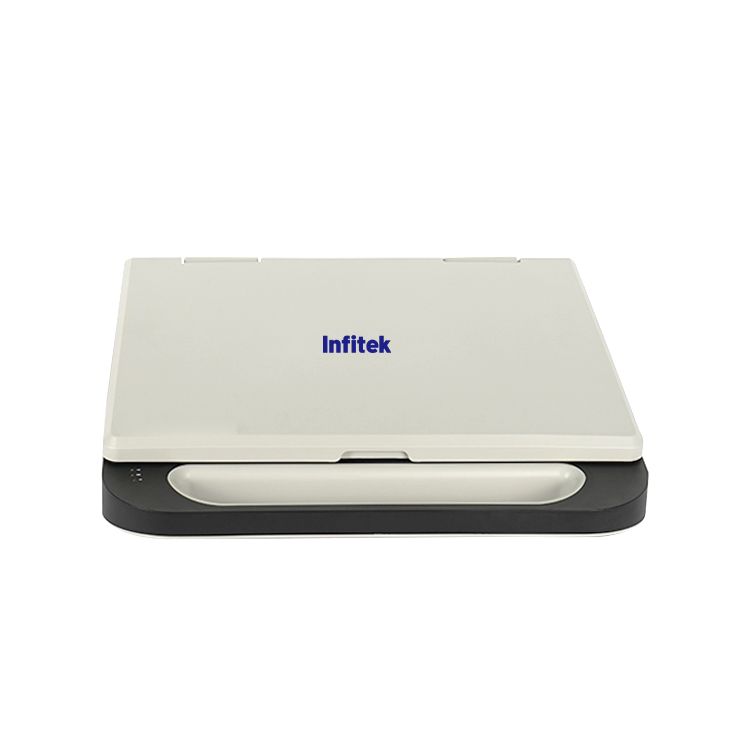

Veterinary Ultrasound Imaging Diagnostic Instrument, US-VC6BP

  • Simple and convenient operating system
  • Small, light and easy to carry
  • Support a variety of probes for a wider range of application

Share the product




Notebook veterinary ultrasound machine US-VC6BP is an upgraded version based on US-VC6B. It is equipped with a 15-inch full digital high-definition display, pseudo-color display, small size, easy to carry, only 4.2kg in weight, 4.5 hours in battery life, and 16G super large. The internal memory can store a large amount of videos and photos, and the built-in lithium battery is suitable for outdoor operation. It is a necessary pet medical and animal husbandry medical equipment for pet clinics of pet hospitals and scientific research units of Animal Husbandry Bureau.


  • All digital imaging images are clear
  • Simple and convenient operating system
  • Small, light and easy to carry
  • Support a variety of probes for a wider range of applications
  • 4 hours long battery life
  • 15 inch LED high-definition display
  • USB interface can be stored and read
  • Multi-function buttons, human-machine dialogue and smoother
  • Large-angle opening and closing, easier to observe
  • Dual probe interface with automatic identification function
  • With open functional interface
  • Backlit keys for easy operation in low light

Image Processing

  1. Image preprocessing: variable aperture, dynamic apodization, dynamic digital filtering, etc.
  2. Image post-processing: 8 kinds of gamma correction, line correlation, 16-level frame correlation, point-line correlation, linear interpolation,

Digital spatiotemporal filtering, digital outline enhancement, 8 kinds of pseudo-color processing, etc.

  1. Blind zone: ≤4mm
  2. Maximum display depth: 300mm
  3. Geometric accuracy: horizontal ≤ 5%, vertical ≤ 5%
  4. Resolution: lateral ≤2mm, axial ≤1mm
  5. Display magnification: 16 magnifications, which can enhance the depth display and make the observation more convenient

Measurement and calculation

Measurement and calculation

B mode: distance, angle, area, volume, trace length, length ratio

M mode: distance, time, slope, heart rate

Professional measurement package (software)

Abdominal measurement package: liver, common hepatic duct, portal vein diameter, gallbladder, kidney, spleen, pancreas

Obstetric Measurement Package: Estimate average fetal weight, average due date, fetal weight, placental thickness and amniotic fluid index

Gynecological measurement kits: uterine body/cervix, ovaries, follicles

Small Organ Measurement Kit: Thyroid, Breast, Testis

Cardiac measurement package: can measure the size of each atrioventricular, left/right ventricular function, distance, time, heart rate, etc.

Urinary measurement kit: kidney, prostate, bladder, testis, ureter, etc.




Model US-VC6BP
Display 15-inch LCD medical display screen
Probe interface Dual probe interface, with automatic identification function
Battery Removable lithium battery, battery capacity 6000 mAh, battery life 4.5 hours
Display mode Five display modes: B, 2B, 4B, M, B/M
Keyboard Four encoders, knob design, fast and convenient operation
Functional operation Simple operation interface, easy to understand, ready to use
Movie playback 256 frames, which can be played back and paused frame by frame, and can be saved and measured after the playback is paused
Interface language Chinese/English interface
Focusing mode Four-segment electronic focusing;
Body position markers ≥98 kinds
Probe frequency conversion All probes support five-segment frequency conversion
Image inversion/flip Up and down, left and right inversion and black and white flip;
Measurement function Professional software measurement package, including gynecology, urology, kidney, heart, thyroid and other specialist measurement packages
Character display Date, clock, name, gender, age, doctor, hospital, note (full screen character editing)
Dynamic range 0-135dB
Grayscale 256
Gain range 0~100dB
Puncture guide function With puncture guide function, the position of the puncture line can be adjusted
Gravel positioning function With gravel positioning, dynamic target tracking function
Probe interface 2 probe interfaces
External interface Video interface, two USB interfaces, DICOM interface, SVGA interface, power interface
Storage Built-in 16G storage, or external U disk storage
Electricity 100-240V~±10%, 1.2-0.6A
Built-in battery Can work for 4.5 hours
Dimensions (L*W*H) 360*355*65mm
Package size (L*W*H) 500*500*230mm
Net /Gross weight 4.2 Kg/7.5Kg

Standard configuration

Name Quantity
Host 1
15-inch high-resolution LED display: 1024×768 1
USB port 2
Composite video signal output 1
HDMI interface 1
Electrical outlet 1
Probe interface 2
7.5 MHz high frequency linear array probe 1
3.5 MHz electronic convex array probe 1

Optional configuration

6.5 MHz intracavity probe

6.5 MHz micro convex probe

Custom machine handbag


Accessories & Package

Accessories & Package
