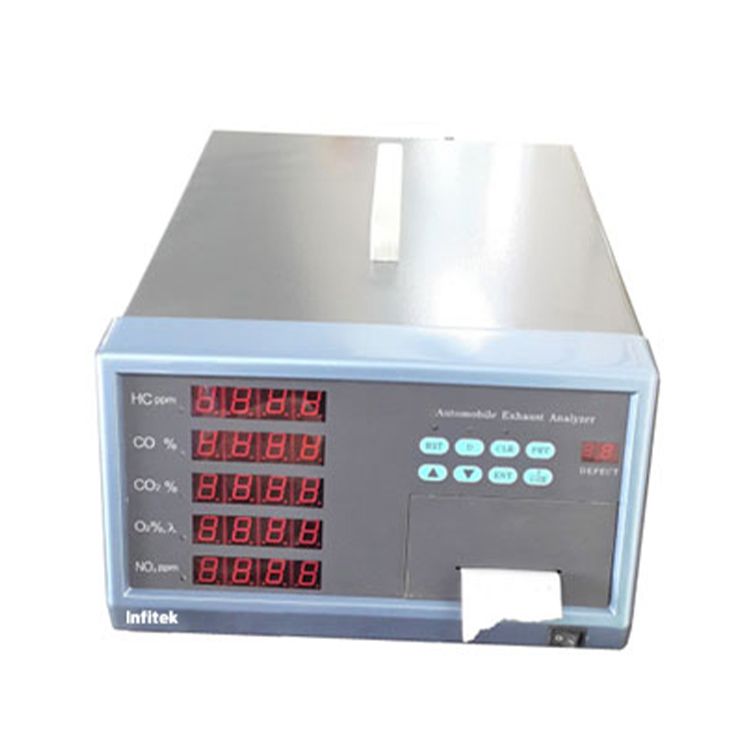

Automobile Exhaust Analyzer, AEA-H501

  • Measure HC, CO, CO2, O2 and NOxconcentration
  • High-brightness digital display
  • Optional built-in printer (or Bluetooth, RS232, analog interface)

Share the product

Description

It is used to measure the gas concentration of HC, CO, CO2, O2 and NOx in the exhaust gas of automobiles, automatically calculate and display the air-fuel ratio λ, and comprehensively detect the combustion performance and emission pollution of the engine.

Features

  • Adoptsforeign advanced technology, German imported movement.
  • With high-brightness digital display, automatic zero calibration, automatic data linearization processing.
  • Automatically alarm when the gas path is blocked, and automatically diagnose the unit when it fails.
  • It is suitable for the detection of engine exhaust components as fuels such as gasoline, LPG, CNG, alcohol and diesel.
  • Can perform free idle, dual idle measurementsand multi-working condition measurement.
  • Easy to operate, accurate measurement data, stable and reliable work, etc.
  • Optional built-in printer (or Bluetooth, RS232, analog interface)

Specifications

Model AEA-H501
Measuring Range HC: 0~10000×10-6(ppm)vol
CO: 0~14×10-2(%)vol
CO2:0~20×10-2(%)vol
O2: 0~25×10-2(%)vol
λ:0.50~3.00
NOx:0~5000×10-6(ppm)vol
COcor:0~10×10-2(%)vol
Indicating Error HC±12 ×10-6(ppm)vol(absolute error) or ±5% (relative error)
CO±0.06×10-2(%)vol (absolute error)or ±5%(relative error)
CO2 ±0.5×10-2(%)vol (absolute error)or ±5%(relative error)
O±0.1 ×10-2(%)vol (absolute error)or ±5%(relative error)
NOx ±25 ×10-6 (ppm) vol (absolute error) or ±4% (relative error)
Note: For the absolute and relative errors listed above, meeting one of the requirements is sufficient.
Stability Automatic zero calibration, torque drift ≤ ± 3%
Repeatability Repeatability error≤±2%
Resolution HC: 1×10-6(ppm)vol
CO: 0.01×10-2(%)vol
CO2: 0.1×10-2(%)vol
O2: 0.01×10-2(%)vol
NOx:1×10-6 (ppm)vol
λ:0.01
Response Time 95% response is not more than 10 seconds
Preheating Time 8 minutes (preheating for 3 minutes for emergency detection)
Output Mode Digital direct-reading display, a printer can be attached to print the gas name, maximum concentration, test time, date, etc. Interface can be attached to connect with computer
Ambient Condition Temperature: -5~50℃, relative humidity≤90%
Electricity AC100-240V, 50/60Hz or DC12V (Optional power inverter)
Power Consumption 40VA
External Dimension (L*W*H) 420*310*170mm
Net Weight 9kg
