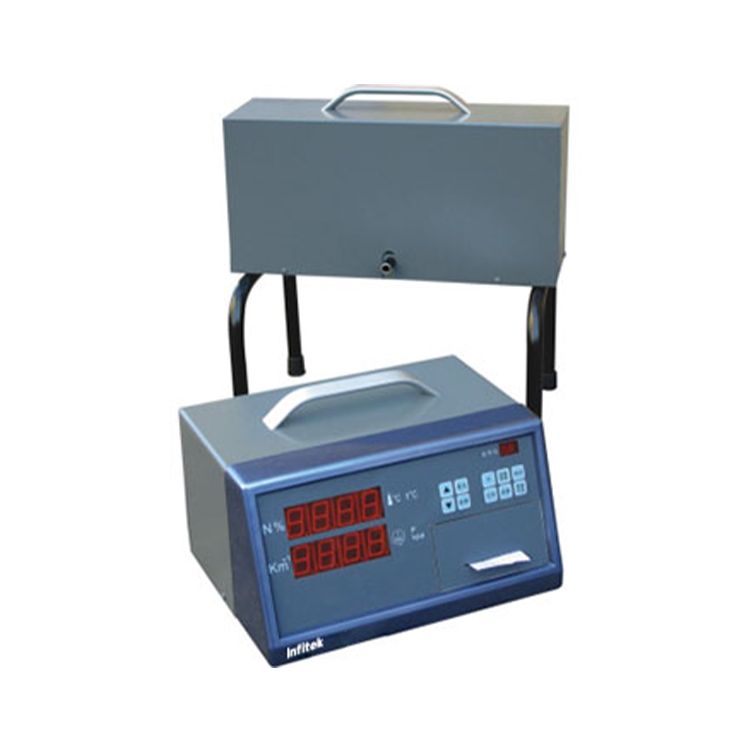

Exhaust Emission Gas Analyzer Opacimeter Opacity Testing Equipment, AEA-H602D

  • High-brightness digital display
  • Indicating Error:≤±2%(Measurement value)
  • Measurement Chamber Temperature:70℃
  • Optional built-in printer (or Bluetooth, RS232, analog interface)

Share the product

Description

The machine adopts a split structure design and adopts split flow sampling technology to measure the smoke level of the diesel engine when it is accelerating, decelerating and stabilizing.

Features

  • Imported movement, more convenient operation, more accurate data.
  • High-brightness digital display.
  • The data is automatically linearized, and the opacity N, light absorption coefficient K and corresponding filter paper smoke value SF can be displayed.
  • The optical system is protected from contamination by “air curtain” technology.
  • The automatic constant temperature control of the measurement chamber can prevent condensation from affecting the test accuracy.
  • Automatic time display, optional speed measurement and oil temperature measurement.
  • Automatically diagnose and display the unit where a fault occurs.
  • Optional built-in printer (or Bluetooth, RS232, analog interface).

Specifications

Model AEA-H602D
Measuring Range Opacity N: 0~100% (equivalent to smoke value 0~10FSN)
Light absorption coefficient K:0~16.06m-1
Speed: 0-9990rpm
Oil temperature: 0-150℃
Indicating Error ≤±2%(Measurement value)
Stability Automatic zero calibration, torque drift ≤±1%/4h
Repeatability Repeatability error≤±1%
Resolution N:0.1%
K:0.01m-1
Speed:10rpm
Oil temperature: 0.1℃
Output Mode Digital direct-reading display, a printer can be attached to print the maximum value of smoke concentration (darkness), test time, date, etc. Interface can be attached to connect with computer.
Measurement Chamber Temperature 70°C (automatic constant temperature);

when the temperature error is ≥±10%, the temperature and error indicator light is on.

Ambient Condition Temperature: -5~50℃, relative humidity≤90%
Electricity AC100-240V, 50/60Hz or DC12V (Optional power inverter)
Power Consumption 150VA
External Dimension (Including bracket)

(L*W*H)

Control unit: 240*310*170mm
Measurement unit: 130*400*390mm
Net Weight Control unit: 4kg
Measurement unit: 5kg
