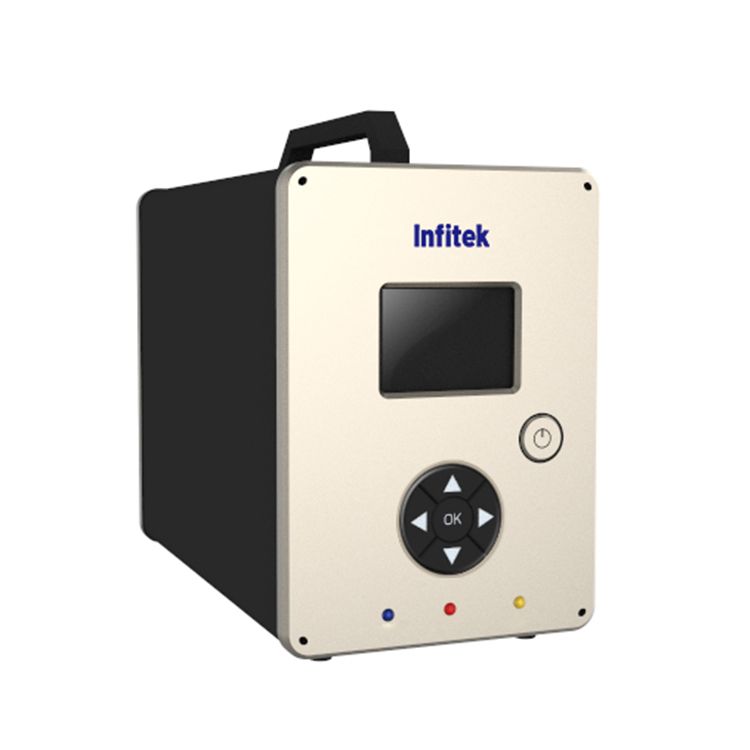

Gas Analyzer, Portable Type, GA-H900

  1. Optional gas types
  2. Accuracy: <±2%F.S
  3. Detection time: <10S
  4. Detection method: pump suction

Share the product

Description

Portable Precision Gas Analyzer: Pump-suction type, with its own data storage function and standard sampling handle, realize remote sampling, and can quickly and accurately detect on site. It is convenient to apply to various occasions such as gas concentration analysis, leakage, discharge outlet, and environmental monitoring. It can directly measure and display the measured gas concentration on the LCD screen with backlight in real time; the data can be downloaded via Card Reader . It can be widely used in petroleum, chemical, environmental protection, metallurgy, refining, gas transmission and distribution, biochemical medicine, agriculture and other industries.

Features

  1. lThe circuit design adopts 64-bit single-chip CPU to ensure the stability of the instrument and high-precision detection;
  2. lSD card for mass storage
  3. Coordinate curve drawing (similar to PLC) detection mode and normal mode can be switched;
  4. Plug-and-play international standard intelligent sensor, very convenient for on-site maintenance;
  5. Full-scale digital temperature compensation;
  6. Quickly realize functions such as viewing, setting, and calibration through 5 buttons;
  7. Intrinsically safe circuit design, the shell is rain-proof, anti-corrosion, and wear-resistant;
  8. One-key recovery function。

Specifications

Gas detection Optional gas types
Measuring range Range optional
Resolution Depends on sensor
Principle Depends on sensor
Accuracy <±2%F.S
Detection time <10S
Recovery Time <20S
Detection method pump suction
Detection mode normal
Concentration unit ppm、%VOL、%LEL、mg/m3、PPB optional
Storage Automatic storage and manual storage can be set;  historical data can be viewed on the screen
Alarm Sound and light(optional)
Environment Requirements 0 ~ 95% RH non-condensing  temperature-40~70℃
Battery Capacity 5800mA,with charging protection circuit
Degree of protection IP65
Dimensions 235×130×200mm(L×W×H)
Net weight 4.8KG
Accessories Standard configuration: aluminum alloy box, Host,Card Reader,charger, manual, sampling handle(0-70℃), dust filter;

Micro printer (optional) wireless transmission (optional)  sampling handle(70-500℃) (optional)
