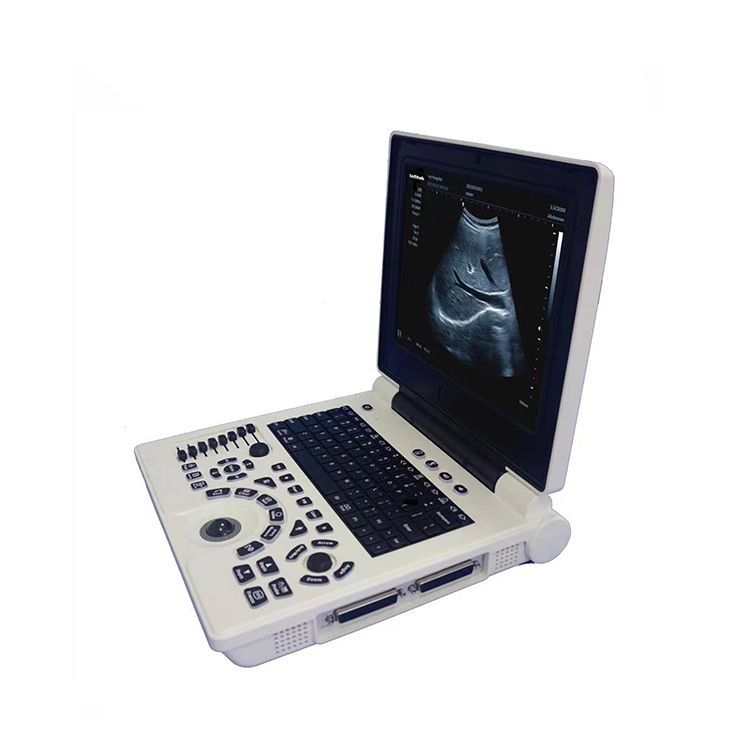

Ultrasound Machine, Black & White, US-HP20

  1. CB/CFM/PW triple synchronization
  2. High resolution12 inch LED with tilting functionality
  3. Probe ports: 2-probe active ports
  4. Stainless steel needle-guided brackets for transvaginal transducer

Share the product


  1. 12inch LCD Display
  2. Windows 7 operation system
  3. Standard key board and backlight key
  4. Rich image processing technology, for instance frames average, view angle, edge enhance, Gamma ,etc
  5. CB/CFM/PW triple synchronization
  6. PW automatic envelope measuremen

Based on advanced design concepts and technological innovation, the equipment has intelligent operating system, abundant software measurement packages, convenient and quick measurement methods and humanized design, improving the efficiency and accuracy of doctors’ diagnosis.


Excellent general imaging

  • Professional clinical measurement packages cover complete clinical applications
  • Specific report templates with anatomical graphics for clinical applications

Brilliant Ergonomics

  • High resolution12 inch LED with tilting functionality
  • User-friendly keyboard and controls

Powerful Workflow

  • Equipped solid state drive, make the storage safer and more reliable,
  • Environmental protection and low power consumption design

Wide range transducer family

  • High frequency linear transducerfor superficial organs
  • Stainless steel needle-guided brackets for trans-vaginal transducer


Model US-HP20
Monitor 12inch LED
Resolution 1024*768
Probe ports 2-probe active ports
Hard disk 60G SSD
Imaging modes Imaging Modes
Imaging parameters Imaging processing Persistence, Gamma, edge enhancement, compression curve, gray, 16 kinds of pseudo-color processing, focus, canvas, contrast, brightness, Invert b/v, Mirror, Reverse
PW parameters PW parameters
Gary scale 256
Dynamic range 80-280dB
Gain control Total gain 8–slice TGC
Scanning depth 400mm max
Acoustic power 3 Levels adjustable real-time display MI/TI
Zoom 10*magnify
Cine loop 200-2000 frames max auto/manually play back
Measurement General measurement Depth, Distance, Trace Length, Ratio (D), Area: Ellipse, Trace
Volume 3-Distance, Ellipse
M Mode Distance, time, slope, Heart Rate
Clinical measurement package Abdomen, OB, Gynecology, Cardiac, Urology, Small Parts
Body mark More than 64 body marks for versatile application

With body position markers

Language supported Chinese, English, Spanish, Russian, French, Portuguese, Germany
Interface VGA, 2 USB ports, HDMI port, DICOM port, LINE OUT
Electricity 100-240V,50/60Hz 100VA
Battery 3.2Ah
Dimensions( L*W*H) 308× 310× 66mm
Net Weight 4 Kg
