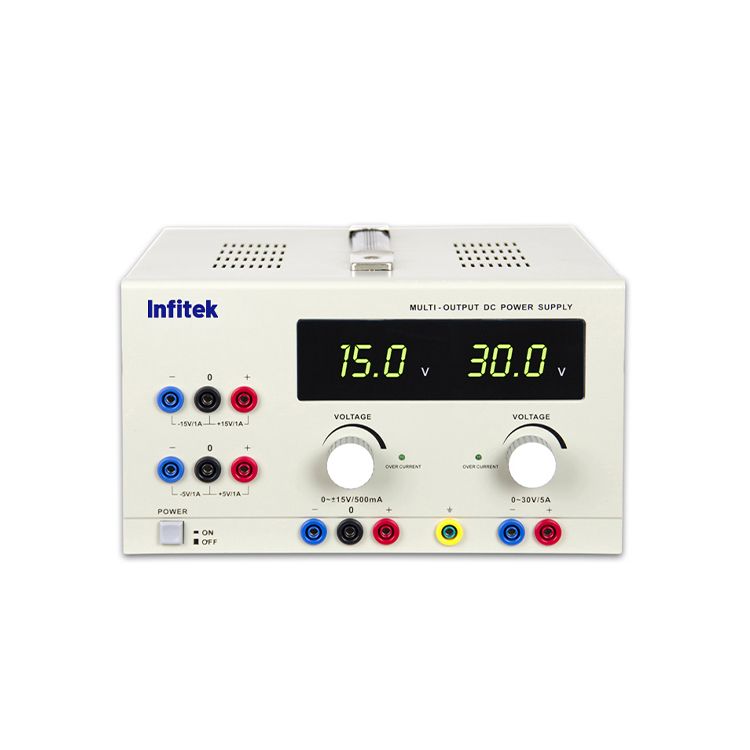

DC Power Supply, MOPS-Q100

  1. Quad independent DC outputs
  2. Two adjustable outputs and two fixed outputs

Share the product



Power Supply

Quad independent DC outputs
Two adjustable outputs and two fixed outputs
Two LED to indicate the adjustable outputs’ voltage
Three symmetric outputs
Over current protection on each output


Output1 Output2 Output3 Output4
Output Voltage 0~30V 0~±15V ±15V ±5V
Output Current Max. 5A Max. 500mA Max. 1A Max. 1A
Line Regulation 0.01%+3mV 0.01%+3mV 1% 1%
Load Regulation 0.01%+4mV 0.01%+4mV 1% 1.50%
Ripple & Noise 1mV 1mV 5mV 2.5mV
Display Accuracy Voltmeter ±(0.2%Rdg+2digits)


Voltmeter ±(0.2%Rdg+2digits)


Input Voltage 110~127VAC±10% 60Hz, 220~240VAC±10% 50Hz, Switchable
Dimensions (WxHxD) 260(W)×160(H)×340(D)mm
Weight (kg) 8kg
