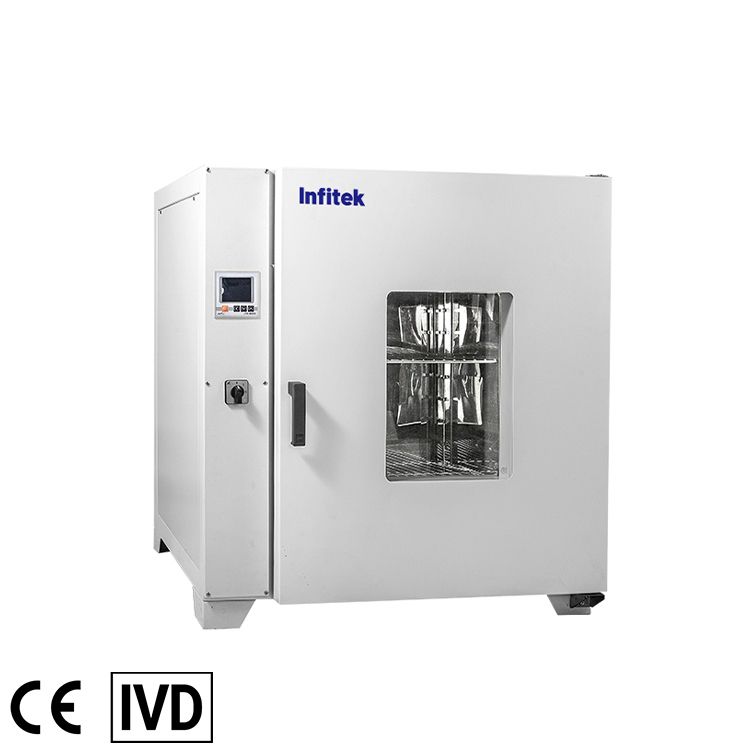

Infrared Fast Heating Drying Oven, DON-IF Series

  1. Volume(L): 43, 81, 138, 252
  2. Temp. Range: RT +10~250℃
  3. Leakage protector
  4. Equipped with spare temperature control
  5. Natural convection

Share the product



1. Microprocessor controller with LCD display make temperature accurate and reliable.

2. Anti-hot handle.

3. Toughened-glass inner door: convenient to observe chamber condition without affecting chamber temperature.

4. Working chamber adopts high quality stainless steel and round angle structure, easy to clean.

5. Silicon sealing ring for reliable sealing.

6. Leakage protector

7. Equipped with spare temperature control which ensures the product work normally even the main temperature control failed.

8 Equipped with multiple sets of heaters, far-infrared heating radiator and temperature control.

9. Adopt temperature selection switch which can select the grade according to the heating speed and operating temperature.

10. Convenient operation for air inlet, reasonable air duct structure, good temperature uniformity.

Optional Accessories:

Multi-segment programmable control

Built-in Printer

RS485 interface.


Model DON-IF45 DON-IF80 DON-IF140 DON-IF250
Capacity 43L 81L 138L 252L
Temp. Range RT+10~250℃
Temp. Fluctuation ±1℃
Temp. Resolution 0.1℃
Temp. Uniformity ≤Max. Temp. ±3.5℃
Shelves 2pcs/adjustable
Consumption 1400W 2000W 2800W 4000W
Power Supply AC110/220V±10%, 50/60Hz
Internal Size(W*D*H) 350*350*350mm 450*400*450mm 500*500*550mm 600*600*700mm
External Size(W*D*H) 640*500*600mm 730*530*690mm 780*690*800mm 880*730*950mm
Package Size(W*D*H) 750*570*840mm 850*600*900mm 900*760*1000mm 1060*800*1100mm
Net/Gross Weight 36/56kg 51/81kg 76/111kg 111/151kg
