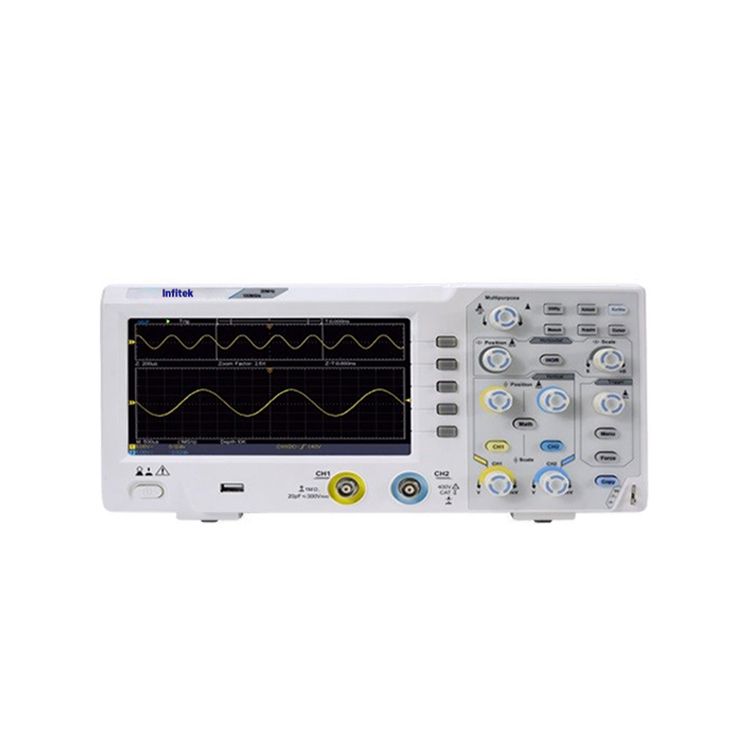

Oscilloscope, DSO-1022, DSO-1102

  1. Channels: 2
  2. Bandwidth: 25MHz, 100MHz
  3. Sample Rate: 100MS/s, 1GS/s
  4. Display: 7″ color LCD, 800 x 480 pixels

Share the product




. 2-Channel

. Ultra-thin body

. 7 inch high-resolution LCD

. SCPI and LabVIEW supported


Technical Data DSO-1022 DSO-1102
Channels 2 2
Bandwidth 25MHz 100MHz
Sample Rate 100MS/s 1GS/s
Display 7″ color LCD, 800 x 480 pixels
HorizontalScale 5ns/div – 1000s/div 2ns/div – 1000s/div
Rise Time 17.5ns 3.5ns
Input Impedance 1MΩ ± 2%, in parallel with 20pF±5pF
Channel Isolation 50Hz : 100 : 1, 10MHz : 40 : 1
Max Input Voltage 400V (PK – PK) (DC+AC,PK – PK)
DC Gain Accuracy ±3%
Record Length 10K
DC Accuracy(average) ≥16:±(3% reading + 0.05 div) for △V
Probe Attenuation Factor 1X, 10X, 100X, 1000X
LF Respond (AC, -3dB) 10Hz (at input, AC coupling,-3dB)
Sample Rate ±100ppm
Relay Time Accuracy
Interpolation sin (x) / x
Interval (△T) Accuracy Single : ±(1 interval time + 100ppm x reading + 0.6ns)
(full bandwidth) Average>16: ±(1 interval time + 100ppm x reading+ 0.4ns)
Input Coupling DC, AC , and GND
Vertical Resolution(A/D) 8 bits (2 channels simultaneously)
Vertical Sensitivity 5mV/div – 5V/div (at input)
Trigger Type Edge, Video
Trigger Mode Auto, Normal, and Single
Trigger Level ±5 divisionsfrom screen center
Line / Field Frequency (video) NTSC, PAL and SECAM standard
Cursor Measurement △V, and △T betweencursors
Automatic Measurement Vpp, Vavg, RMS, Frequency, Period, Vmax, Vmin, Vtop, Vbase,
Width, Overshoot, Pre-shoot, Rise time, Fall time, +Width, -Width,
+Duty,-Duty, Delay A->B (up)    , Delay A->B (down)    , area, cycle area
Waveform Math +, -, x, ÷, invert, FFT
Waveform Storage 16 waveforms
Lissajous Figure Bandwidth Full bandwidth
Phase Difference ±3 degrees
Communication Interface USB host, USB device
Frequency Counter available
Power Supply 100V – 240V AC, 50/60Hz, CAT II
Power Consumption <15W
Fuse 2A, T class, 250V
Dimension (W x H x D) 301 x 152 x 70 mm
Weight 1.10 kg
