Mobile Medical Refrigerator, MFR Series

  1. Combined with forced air cooling system and direct cooling system.
  2. Multi-function: 3 ranges of inner temperature:
    2℃~8℃ used as pharmacy refrigerator
    -10℃~-25℃ used as a deep freezer

Share the product

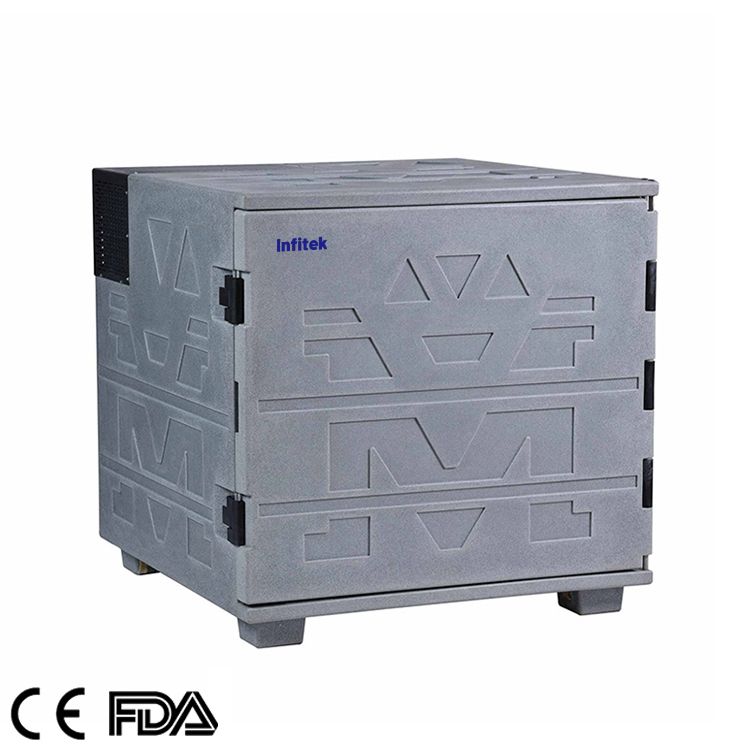

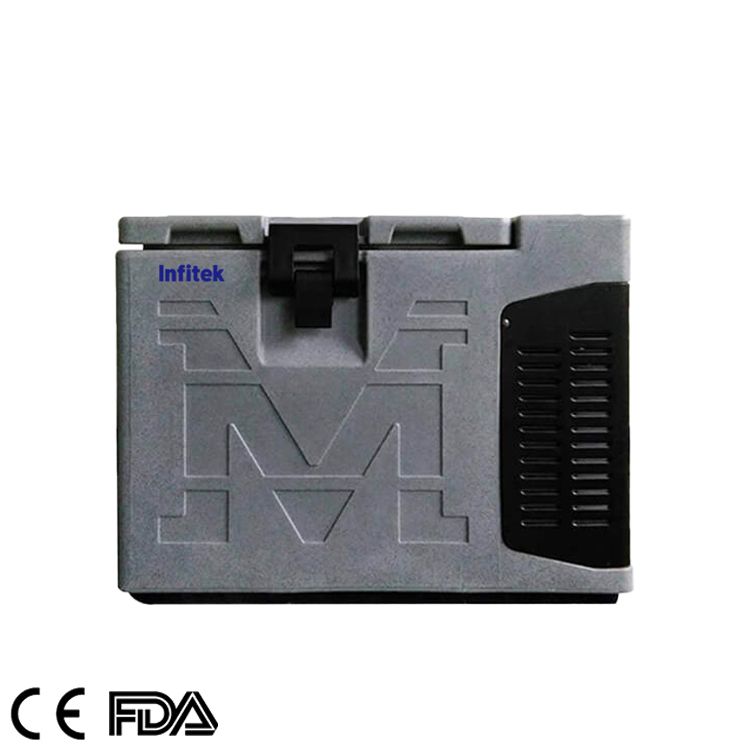

Mobile-Medical-Refrigerator-with-Capacity-30L-80L-700L-2-1             Mobile-Medical-Refrigerator-with-Capacity-30L-80L-700L                   MKR-4V700M-01

·            · MFR25-30                                    ·MFR25-80                                         · MR4-700

Key Features
Multiple voltage used as AC220V or DC12V/24V(Optional), (only for blood transportation) power supply of cigarette lighter.
Combined with forced air cooling system and direct cooling system.
2 ranges of inner temperature:
2℃~8℃ used as pharmacy refrigerator
-10℃~-25℃ used as a deep freezer

To store and transport blood, serum, plasma, vaccine, reagents and special medicines in the medical industry. Also used as medicines pass box for epidemic prevention station, blood bank. Health center, CDC, animal husbandry bureau, army and logistics service, express company, pharmaceutical factory, genetic engineering.

The whole roll structure prevents collision damage.
Multilayer stacking.

Alarm system function with audible and visible.
Constantly alarm after power off.
Keyboard lockable.


Model MFR25-30 MFR25-80 MR4-700
Specifications shelves/basket Basket around Evaporator Basket around Evaporator Blood Baskets
Cooling method Forced Air Cooling Forced Air Cooling Forced -air Cooling
Defrost Manual Manual No Frost
Refrigerant R134a R134a R134a
Power consumption(kWh/24h) 1.2 1.6 1.6
Noisedb) 45 46 50
Ambient temperature(℃) 10~32℃ 10~32℃ 10~32℃
Temperature range(℃) -25/4℃~22℃ -25/4℃~22℃ 4℃~22℃
Cooling system Compressor brand/QTY China Brand/1 China Brand/1 China Brand/1
Temperature controller Microprocessor Microprocessor Microprocessor
Display Digital display Digital display Digital display
Power Voltage/frequencyV/Hz) 220/50Hz、DC12V/24V 220/50Hz、DC12V/24V DC12V、DC24V、AC220V
PowerW) 80W 100W 160W
CurrentA) DC 6.5A DC8A DC12V/14A、DC24V/7A、AC220V/1.5A
Material Inside material PE PE PE
Outside material PE PE PE
Size CapacityL/cu.ft) 30/1.059 80/2.825 700/24.72
NT./ 23.5/26.5 50/51 182/209
Exterior size(W*D*H)(mm) 610*360*460 930*580*570 1070*1120*1080
Interior size(W*D*H)(mm) 364*253*352.5 547*378*369.5 939*973*863
Package size(W*D*H)(mm) 680*445*535 990*650*640 1140*1190*1150
CBM 0.16 0.41 1.56
20GP/40GP/40HQ 160/340/425 54/108/144 16/40/40
Alarm High/low temperature Y Y Y
Power failure Y Y Y
Sensor error Y Y Y
Thermostat failure Y Y Y
  Power failure backup system(alarm) 8h 8h 8h
Accessories Foot / / PE Foot
Temperature recorder / / Optional
Remote alarm port Optional Optional /
